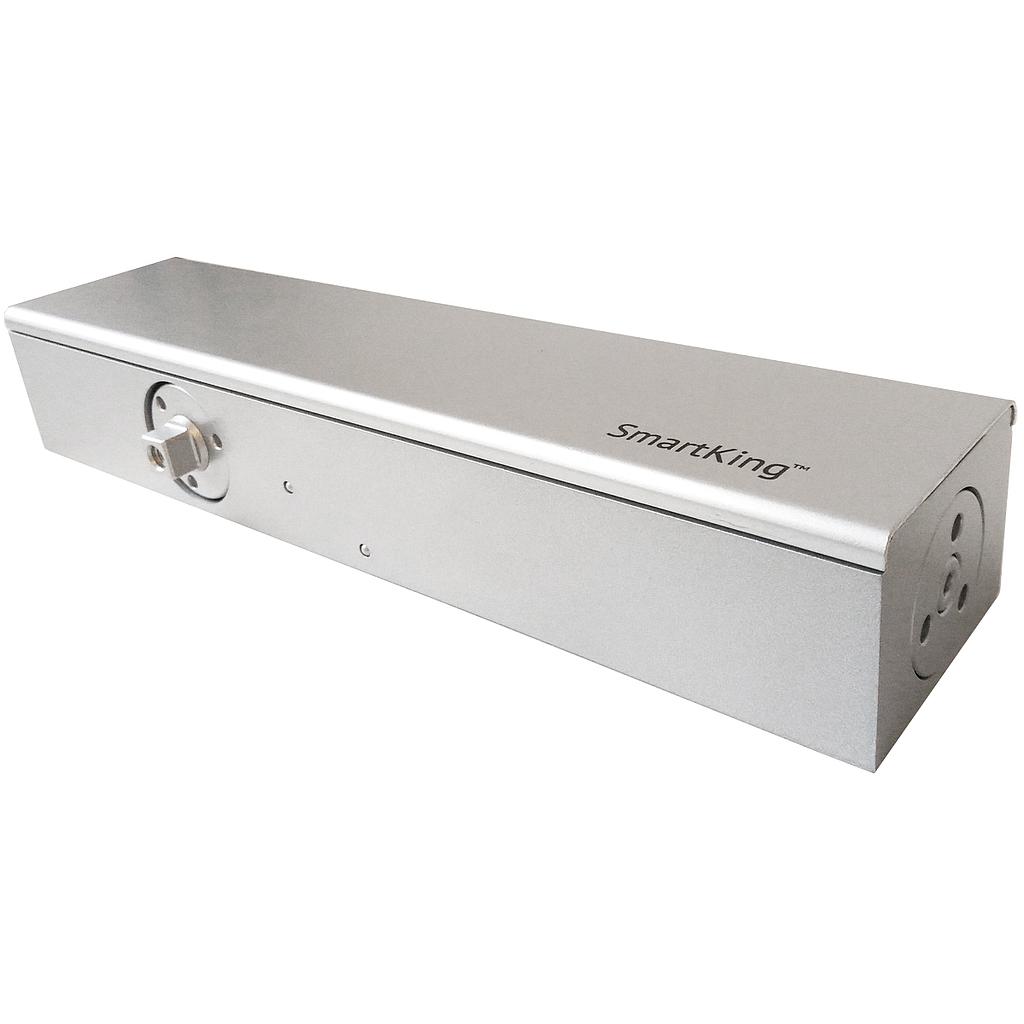

Deurpomp EN 2-6 20-120kg DCDA body
Description
Multifunctional door closer
Suitable for external doors
Suitable for doors from 20 to 120 kg
Can be used with aluminium, wood or hollow metal doors and frames
EN1154/EN1634 and CE compliant
Maximum door width 1400mm
Adjustable EN2 to EN6
Compliment bearing for high efficiency
4 settings including back-check and delayed action
Separate standard arm available
Separate slide mounting arm available
SmartKing™ complete and multifunctional door closer line offer advanced technology, modern designs and commercial products that are both beautiful as well as functional to meet the demands of any building design. All products can be used with aluminium, wood or hollow metal doors and frames.
SKDC115112 - SmartKing Deurdranger EN2-6
- Apart verkrijgbare standaard arm
- Apart verkrijgbare glijarm
Omschrijving:
De SmartKing deurdranger EN2-5 voldoet aan
de hoogste normen en is geschikt voor buitendeuren. De Smartking deurdranger
kan worden gebruikt met aluminium, houten of metalen deuren en kozijnen. De deurdranger is geschikt voor deuren van 20
tot 120 kg.
Specificaties:
- Afmetingen: 275 x 63 x 46 mm (L x B x D)
- Sluitkracht: EN2 tot EN6 (instelbaar)
- Geschikt voor deurgewicht: 20-100 kg
- Maximale deurbreedte: 1400 mm
- Normen: EN1154/EN1634 en CE
Specifications
| Type | Door closer w/o arm |
| Brand | SmartKing |
| Closing force | EN 2-6 |
| Flush / Surface mounting | Surface mounting |
